Accessory Products / Surge Protection Device
  • Applications

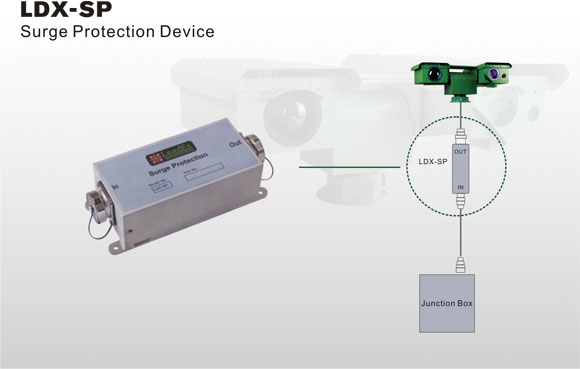

    The LDX-SP device is designed to provide protection for the LeadEx PVP-TM line of products that uses standard junction box. The device is designed to protect sensitive and expensive equipment from voltage surges caused by lightning strikes or by voltage fluctuations in the electrical grid. The device is designed to withstand harsh outdoor environmental conditions and its compact form factor offers a versatile outdoor mounting options.

    Features
    • Immunity to high-energy voltage transient according to European Immunity Standard (IEC 61000-4-5, IEC 61000-4-4, and IEC 61000-4-3).
    • Enables power and communication to/from an outdoor device.
    • Withstands harsh outdoor environmental conditions. Weather and dust proof, IP67-Rated, (IEC 60529) and operated wide temperature range (-20°C to +80°C)
    • Its compact form factor offers versatile outdoor mounting options.
    • The connecting cables and plugs used are hermetically sealed to aviation standard.
    • Pin compatible with the LeadEx PVP junction box.
    • Easy to deploy in already installed systems by simply replacing the cable between the LeadEx PVP-TM camera and the junction box (JB). See installation manual for further details.
    Specifications
    • Ingress protection: IP67/IEC 60529
    • Standard Interface:
      • Aviation cables as used in the LeadEx PVP-TM systems
    • Provides surge protection for all LeadEx PVP-TM signals:
      • DC Power line
      • Two Analog video lines
      • Control lines
      • Network lines (where applicable)
    • Transit immunity on all ports with compliance to IEC 61000-6-2 standard.
    Technical Parameters
    General Specifications


    Unit

    Value

    Power Requirements VDC 18~40
    Output V/A 34/10
    Enclosure Dimensions Cm 16×6×8
    Enclosure Rating IP 67
    Operating Temperature °C -20 to 80
    Transient Protection Specifications
      Unit Value
    DC Power KV 0.5
    Signal KV 1
    Ground KV 4/8 (contact/air)
