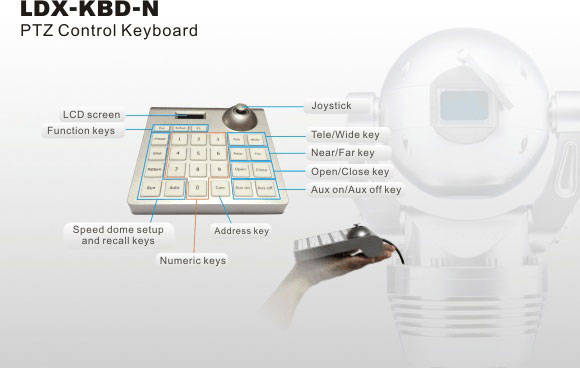

Accessory Products / LDX-KBD-N PTZ Control Keyboard

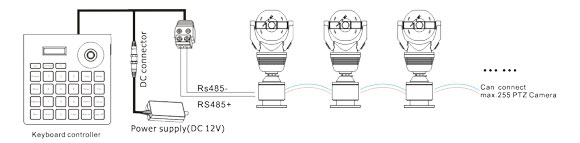

  • Applications

    Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR.

    Specified Function
    • Real time display the current camera address and baud-rate
    • 4 level control speed can be set
    • Camera ID can be switched directly by pressing ’AUX ON’/ ’AUX OFF’
    • Key-press sound volume can be adjusted
    • Mini size design, applicable for the protable applications
    Basic Function
    • RS485 control, support 255 camera address
    • All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
    • Compatible with multiple Protocol: Pelco-P, Pelco-D, Panasonic
    • Keyboard operation password on/off/lock function
    • LCD screen to real-time display its operation status

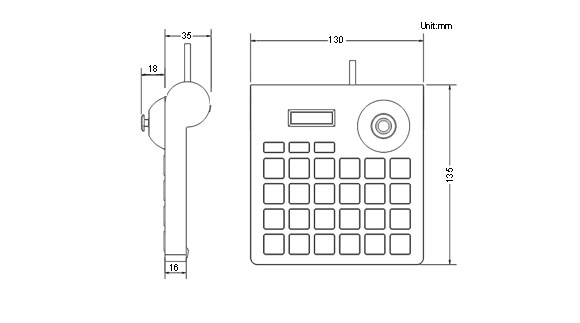

    Dimensions
    Specifications
    Model LDX-KBD-N
    Protocol Pelco-D, Pelco-P, Panasonic etc.
    Baud rate 1200, 2400, 4800, 9600, 19200,38400bps
    Control Address Control 255 PTZ camera, decoder at the most, address code:0-254
    Communication Mode RS485 half-duplex
    Joystick control: up, down, left, right
    Menu and Key-press English
    Warning Tone Key-touch beep ON/OFF
    Power Supply DC 12V±10%
    Power Consumption 5W MAX
    Working Temperature 0°C - 50°C
    Store Temperature -20°C - 70°C
    Packing Dimension(mm) 190 X 170 X90
    Weight 0.9Kg
