Accessory Products / LDX-KBD-M PTZ Control Keyboard

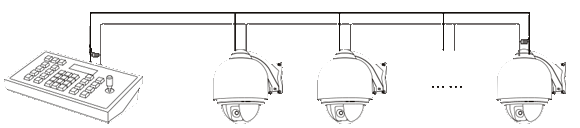

  • Applications

    Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR.

    Specified Function
    • Real time display the current camera address and baud-rate
    • Unique control code study function, the user’s can revise the control code instruction voluntarily
    • Support firmware online upgrade function
    • Maximum sub-control:16
    Basic Function
    • RS485 control, support 255 camera address and connect 128 devices in parallel simultaneously at the most
    • All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
    • Good communication compatibility, built-in many kinds of agreements
    • Keyboard operation password ON/ OFF/ LOCK function
    • Key-press warning ON/OFF function
    • Control PTZ camera in infinitely variable speed
    • LCD display
    Model LDX-KBD-M
    Protocol Pelco-D, Pelco-P, Panasonic etc.
    Baud rate 1200, 2400, 4800, 9600, 19200bps
    Control Address Control 255 PTZ camera, decoder at the most, address code:0-254
    Communication Mode RS485 half-duplex
    Cascade connection number 6 sub-control at most, controller ID:0-15

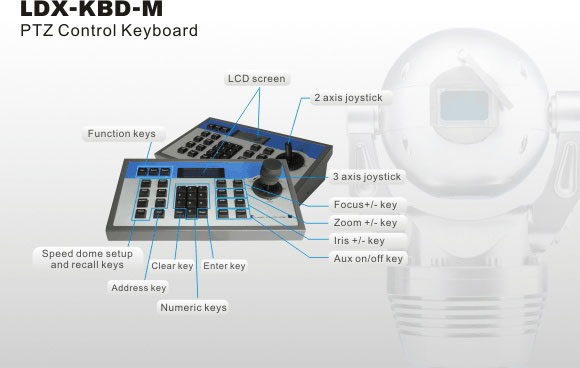

    Joystick 3D(control: up, down, left, right, zoom)
    Interface Mode 5Pin pressing line port
    Menu and Key-press English
    Warning Tone Key-touch beep ON/OFF
    Power Supply DC 12V±10%
    Power Consumption 6W MAX
    Working Temperature 0°C - 50°C
    Store Temperature -20°C - 70°C

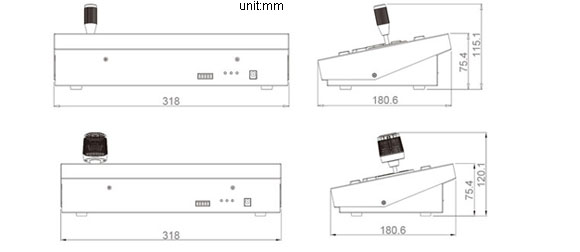

    Packing Dimension 42 X 26 X17 cm
    Weight 2.5Kg
