Applications

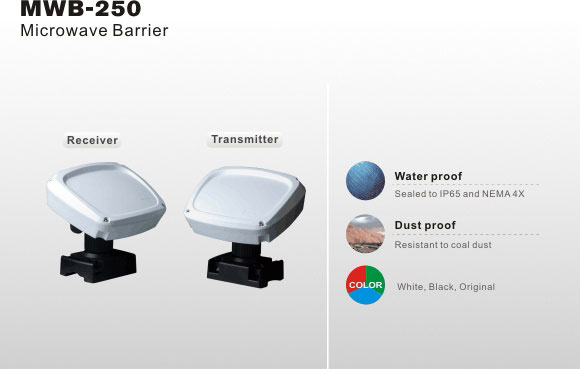

MWB-250 is a bi-station microwave detector for outdoor application, it consists of transmitter (T) and receiver (R), and the detection range can reach max 250m. MWB-250 microwave barrier comes with self-adapting circuit, which can eliminate false alarms while maintaining high security standards for the detection of human intruders in the protected area.

Several MWB-250 systems can be combined to provide a complete perimeter protection with unlimitedspace or
shape. The MWB-250 is designed for continuous round-the-clock operation and keeps working at a wide
temperature range of -40℃ up to +65℃and max ambient humidity up to 100%

Features

• Perimeter protection microwave barrier which consists of transmitter (T) and receiver (R)

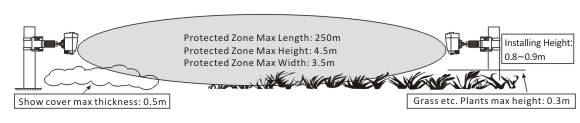

• The detection range up to 250meters
• Volumetric Barrier detection zone: Three-dimensional protection zone, not beams-liked zone
• 4 crystal-controlled modulation channels for MWB-250 to allow the detection zones of multiple barrier sets overlapped without crosstalk
• Self-adaptive circuit: suitable for various complicated perimeter protection
• Anti-interference function: microwave sensitivity won’t be affected by heavy fog, rain, snow, etc.
• Be immune to animals through its original method of false alarm elimination
• Four Installation methods: can easily be installed on any type of fence or pole
• Wide working temperature: -40ºC ~ 65ºC and relative humidity up to 100%
• IP65 rated outdoor professional housing
