HD Mega Pixel IP Camera /

Applications

Petroleum,petrochemic field
Shipping lane,riverway
Army
Airport
Defense
Coastline

Forest fire prevention
Border defense
transportation
Nuclear power station
Search and rescue and relief
Port,dock

Features

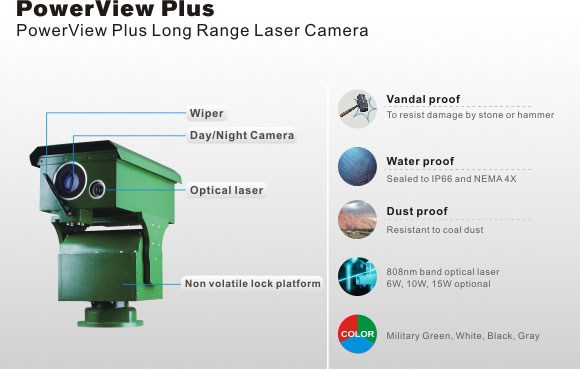

Optional built in mega pixel camera
Lens options: 10~1000mm (Motorized focus, zoom and auto iris)
808 nm band optical fiber laser,6W、10W、15W optional,IR distance 1km~2.5km
Auto/ manual laser ON/OFF control (Auto mode, the Laser is automatically ON/OFF for the shift from camera B/W mode)
CCD window with filmed and toughened glass
All Metal body with sealed waterproof (IP66) and vandal proof design
Unique wiper design makes clear image in rainy/foggy/dusty day
Unique DIP switch & hotkey design simplify system setup
Wiper, heater & internal temperature control
Geared pan/tilt design with auto-lock function and optional “micro-step” control
Built in system memory with surge & non-volatile protection
Unique Firmware Online Upgrade (FOU) function provide convenience for customized requirement and system maintenance

Pan/Tilt Parameter

OSD password protection, prevent unauthorized change to the system
OSD programming menu,inside temperature and PTZ(Title/Time/Pan/Tilt/Zoom display)
User definable power-up action and temperature control
User definable 128 target presets, 8 preset tours, preset video frozen
Privacy Mask function, 8 privacy zone
Auto/manual calibration ensure accurate motor operation
User definable left and right limitation, proportional pan speed
User definable auto-scan, pattern, scan speed
Compatible to PELCO P/D protocol and customized protocol for optional

Network Parameters

Image Sensor	Progressive scan RGB CMOS 1/3"
Day and night	Automatically removable infrared-cut filter
Minimum illumination	0.1Lux(color),0.02Lux(B/W),F1.2
Network
Protocol	IPv4/v6,HTTP,HTTPS,QoS,Layer3,DiffServ,FTP,CIFS/SMB,SMTP,Bonjour,UPNP,SNMPv1/v2c/v3(MIB-II),DNS,DynDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,RTCP,ICMP,DHCP,ARP,SOCKS
Security	Password protection,IP address filtering,HTTPS encryption,IEEE802.1X network access control,digest authentication,user access log
Interface	RJ45 10M/100M Interface
Video
Algorithm	H.264(MPEG-4 Part 10/AVC) H.264 Baseline and Main Profile Motion JPEG
Frame rate	25/30fps(50/60Hz)
Video Streaming	Multiple,individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Bit rate	1M-16M (bps)\1M-20M，CBR/VBR optional
Resolution	1280x960(approx. 1.3MP) to 160x90
Dual Stream	Support
Image settings	Compression,color,brightness,sharpness,contrast,white balance,exposure control,exposure zones,backlight compensation,fine tuning of behavior at low light,WDR-dynamic contrast,Text and image overlay,privacy mask,mirroring of images,Rotation:0°,90°,180°,270°including Corridor Format
Audio
Algorithm	AAC LC 8/16 KHz,G.711 PCM 8KHz,G.726 ADPCM 8KHz Configurable bit rate
Audio Interface	External microphone,input or line input,line output.Built-in microphone(can be disabled)
Audio streaming	Two-way,full duplex
Alarm
Intelligent video	Video motion detection,active tampering alarm,audio detection
Event triggers	Intelligent video,external input,audio level,time scheduled,edge storage events
Event actions	File upload:FTP,HTTP,network share and email;notification:email,HTTP and TCP;external output activation;pre- and post-alarm video buffering;video and audio recording to edge storage;PTZ preset;guard tour;play audio clip;day/night switching;status LED activation
Other
Local Storage	TF card,NAS server storage (ISCSI optional)
Remote config	Surpport
Data Streaming	Event data
Built-in installation aids	Focus assistant,remote back focus,pixel counter
Edge storage	MicroSD/microSDHC/microSDXC slot supporting memory card up to 64GB(card not included).Support for recording to network share(network-attached storage or file server)
