Applications

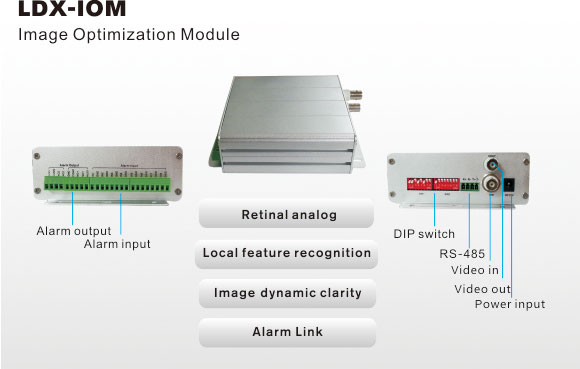

LDX--IOM(Image Optimization module)is the combo embedded module with fog penetrate and low-lux brightening function, that can be adjusted algorithm automatically according to the monitoring screen, to realize the fog penetrate and low-lux function. The theoretical basis is an image enhancement theory of human Visual System based on the Scientific experiments and scientific analysis. The Image optimization function will provide more clear image in any hazardous weathers and conditions, Main applications: highway surveillance, airport, foggy and raining day, harbour, search and rescue and any hazardous weathers.

Features

• Full-color processing to ensure the authenticity of the image.
• Adaptive per-pixel dynamic range correction.
• Different adjustment curve on each pixel.
• nonlinear image adjustment.
• keep image detail on good sharpness and good condition
• adapt to the classic characteristics of human visual perception
• image local feature recognition algorithm: distinguish the dark pixel in bright area and dark area, and handle with different processing optimization algorithm
• Repair excessively bright and dark image, keep original image when brightness of image is in good balance
• According to the input video stream, to adjust the per-pixel curve
• processing good fit image correction curve automatically with according to the input video stream
• Support PAL and NTSC format image
• Wide voltage input range: 5VDC ~ 12VDC
• Low power consumption: <1.3W
• Wide working temperature range: 0℃-50℃

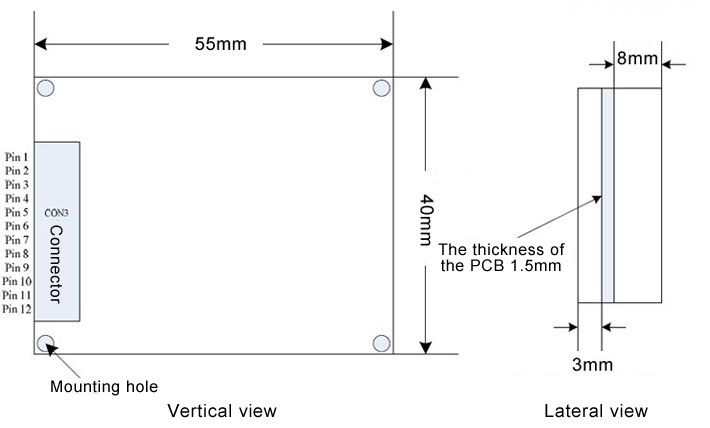

Dimensions
