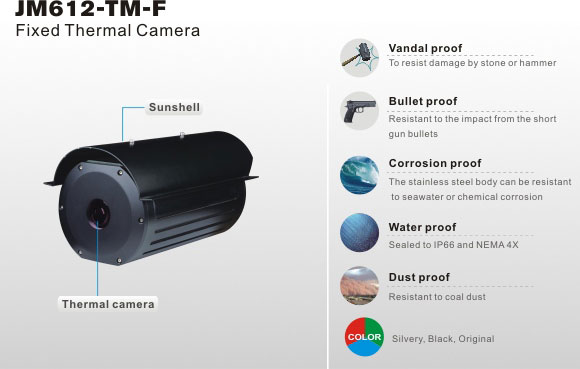

Thermal imaging series / JM612-TM-F Fixed Thermal
  • Applications
    These series thermal camera are easy-to-use and require no operator training. The thermal imaging cameras create a virtual security fence and are finding their way into many security and surveillance applications. Nuclear plants, petrochemical installations, warehouses, ports and airports ... they all are vulnerable to theft, or even worse terrorist attacks, and can be protected by using thermal imaging cameras.
    • 320*240pixel or 640*480oixel un-cooled FPA thermal core optional
    • multiplex lens for optional(19mm, 35mm, 50mm, 75mm and 100mm)
    • Camera body is machined from Aluminum Alloy vandal proof design
    • Robust Design, IP66 Water Proof Standard
    • Compatible to Pelco P/D protocol and customized protocol for optional
    • Control Interface: RS-485 bus line
    • On-Screen-Display programming menu
    • Support with LeadEx Firmware Online Upgrade function
    • Surge protection & nonvolatile memory
    • Unique DIP switch design, offers the operator an easy-to-use windows
    Thermal Core Parameter
    • FPA(Focal Plane Array):320*240 (640*480 Pixel for optional)
    • Detector Material:Vanadium Oxide(VOX)
    • Detectable IR Wavelength: 7.5 ~ 14μm
    • Sensitivity(NETD):35mk@f1.0/85mk@f1.6
    • Time to Image:Less than 2 seconds
    • Minimum pixel size:38μm(320*240 Pixel) 25μm(640*480Pixel)
    • Useful Scene Temperature:-40ºC~+75ºC
    • Zoom:2x digital zoom
    Mechanical Parameter
    • Filmed and toughened glasses:5mm
    • Extra Germanium glasses window for optional(distortion free)
    • Aluminum alloy body:8mm~22mm
    • (316L#)Stainless Steel Dome body for optional
    • Continues working temperature:-40ºC ~ +60ºC
    • Net weight:5~10KG (A-alloy)
    • Dimension:378x280 mm(length*width)
    • Input Voltage:AC24V±10%, 50Hz
    • Maximum Power:<30VA
