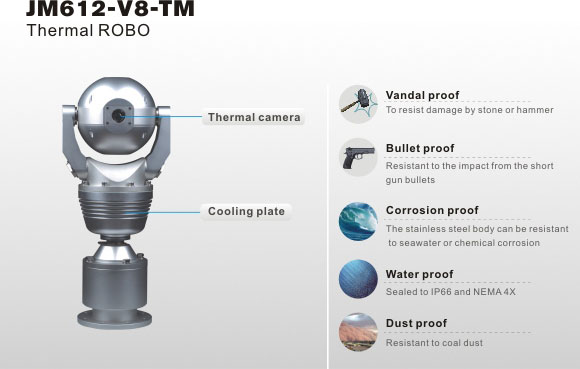

Thermal imaging series / JM612-V8-TM Thermal ROBO
  • Applications

    • Oil Field
    • long range enforce the law
    • Military
    • Airport
    • Forest fire proof
    • Transportation
    • National defense
    • Border defense
    • Maritime
    • nuclear power staion
    • search and rescue
    • harbor
    • Integrated with thermal,lens,CPM and variable pan/tilt speed
    • The body machined from 8~22mm special type aluminum alloy or 316#stainless steel, rugged and wind proof
    • Unique DIP switching design makes system setup easy
    • Unique Firmware Online Upgrade (FOU) function convenient for customized requirement and system maintenance
    • Auto/Manual calibration ensures precise system operation
    • Built in temperature control prolong the using life
    • IP module optional
    • GPS interface and/or radar and digital compass interface(NM0183 protocol) optional
    Thermal Optical Parameter
    • FPA(Focal Plane Array):320×240 or 640×480
    • Detector material:Vanadium Oxide(VOX)
    • Receivable IR wave length:7.5~14μm(3~5μm optional)
    • Sensitivity(NETD):35mk@f1.0/85mk@f1.6
    • Time to image:less than 2 second
    • Minimum pixel:38×38/25×25/17×17μm
    • Effective imaging temperature:-40ºC~+75ºC
    • 2X or 4X optical zoom
    Thermal Camera Features
    • Optional target surface temperature testing function
    • Multi image modes are options, such as White hot, Black hot, Fusion, Rainbow etc
    • High temperature target Pseudo Color display function
    • Auto focus and energe abnormal alarm optional
    • Digital Detail Enhancement
    Pan/tilt Feature
    • 360° endless rotation
    • User definable 128 preset, 8 preset tour, preset video frozen
    • User definable auto-scan,pattern,scan speed
    • left limit and right limit,humanize of focus and speed proportion
    • User definable power-up action,including self-testing diagnostics
    • OSD password protection, prevent unauthorized change to the system
    • OSD programming menu,inside temperature and PTZ(Title/Time/Pan/Tilt/Zoom display)
    • Built in system memory with surge & non-volatile protection
    • RS-485/RS-422 half duplex and full duplex optional
    • PELCO P/D protocol and customize protocol optional
