Applications

Features

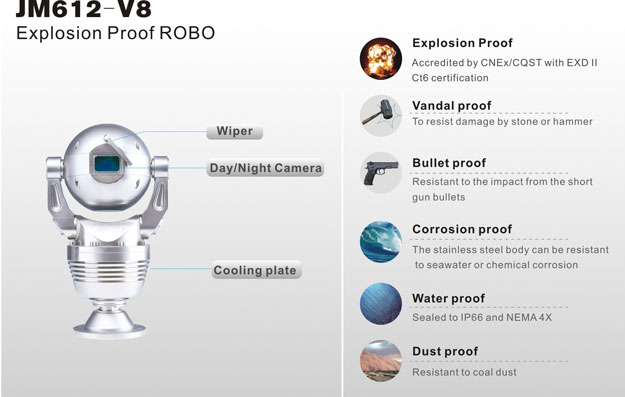

• Integrated with Day/Night camera, CPM, variable high-speed pan/tilt motor and enclosure
• The body machined from aluminum alloy or 316#stainless steel, rugged and 6 proofs.
• Unique DIP switch & hot-key design simplify system setup
• Unique wiper design makes clear image in rainy/foggy/dusty day
• Unique Firmware Online Upgrade (FOU) flexible for customized requirement and maintenance
• Unique CCD window from filmed and toughened optical glass
• Auto/Manual calibration ensure accurate motor operation
• Wiper, heater & internal temperature control
• IP66/CE/FCC/RoHS compliance

Camera Feature

• Built-in Day/night IP camera or HD IOP camera module
• Back light compensation on/off selectable & WDR functions
• 8 Privacy Masking Zone and OSD password protection
• Privacy masking zone
• Mirror image
• Automatic infrared filter out mode(ICR)
• Image freeze
• Electronic shutter/slow shutter

Pan/Tilt Feature

• User definable 128 preset , 8 preset tour
• User definable auto-scan, pattern, scan speed
• User definable left/right pan limit, proportional pan speed
• User definable power-up action, including self-testing diagnostics
• On-Screen-Display programming menu
• Auto / Manual zero position calibration
• Preset video frozen function
• RS-485/RS-422 half duplex and full duplex optional
• Pelco P/D protocol and customize protocol optional
• Surge & non-volatile protection
