Applications

• Oil Field
• long range enforce the law
• Military
• Airport
• Forest fire proof
• Transportation

• National defense
• Border defense
• Maritime
• nuclear power staion
• search and rescue
• harbor

Features

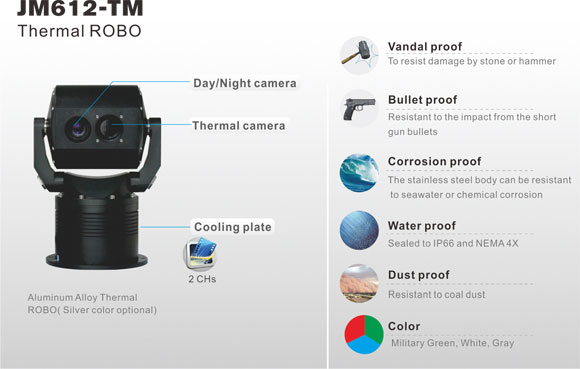

• Integrated with day/night camera,thermal,lens,CPM and variable pan/tilt speed
• The body machined from 8~22mm special type aluminum alloy or 316#stainless steel, rugged and wind proof.
• Unique CCD window from filmed and toughened glass
• Unique DIP switching design makes system setup easy
• Unique Firmware Online Upgrade (FOU) function convenient for customized requirement and system maintenance
• Auto/Manual calibration ensures precise system operation
• Built in temperature control and thermal part separate remote ON/OFF prolong the using life

Thermal Optical Parameter

• FPA(Focal Plane Array):320×240 or 640×480
• Detector material:Vanadium Oxide(VOX)
• Receivable IR wave length:7.5~14μm(3~5μm optional)
• Sensitivity(NETD):35mk@f1.0/85mk@f1.6
• Time to image:less than 2 second
• Minimum pixel:38×38/25×25/17×17μm
• Effective imaging temperature:-40ºC~+75ºC
• 2X or 4X optical zoom

Thermal Camera Features

• Multiple choice of fixed or motorized focus lens optional
• 2-FOV or continuous zoom lens optional
• Optional target surface temperature testing function
• The thermal part separate remote ON/OFF
• Multi image modes are options, such as White hot, Black hot, Fusion, Rainbow etc
• High temperature target Pseudo Color display function
• Digital Detail Enhancement

Pan/Tilt Features

• User definable 128 preset , 8 preset tour, preset video frozen
• Programmable part action, auto-scan, random scan, scan speed, preset tour
• User definable left/ right limit, proportional pan speed
• User definable power-up action and inside temperature control
• OSD password protection
• On-Screen-Display programming menu, inside temperature and pan/tilt/zoom position
• Surge & non-volatile protection
• RS-485/RS-422 half duplex and full duplex optional
• PELCO P/D protocol and customize protocol optional
