Thermal imaging series / PVP-TM-100-A Thermal
  • Applications
    • Oil Field
    • long range enforce the law
    • Military
    • Airport
    • Forest fire proof
    • Transportation
    • National defense
    • Border defense
    • Maritime
    • nuclear power staion
    • search and rescue
    • harbor
    Features

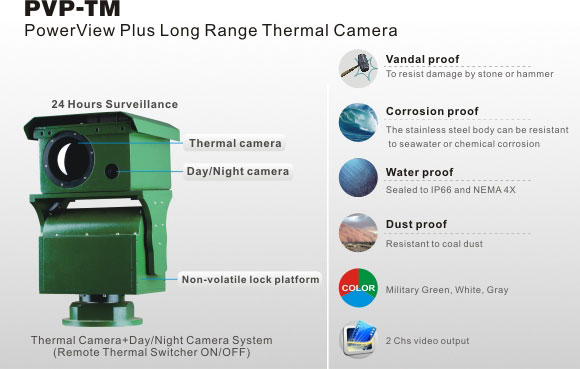

    • Integrated with day/night camera,thermal,lens,CPM and variable speed pan/tilt motor and enclosure
    • Unique DIP switching design makes system setup easy
    • Unique Firmware Online Upgrade (FOU) function convenient for customized requirement and system maintenance
    • Unique micro-step function design to ensure the precision of surveying long distance target
    • Unique CCD window from filmed and toughened glass (5mm thick)
    • Auto/Manual calibration insures precise system operation
    • Built in temperature control and thermal part separate remote ON/OFF prolong the using life
    • Auto-Lock function for optional (Mainly applicant in Vehicle system)
    • Wide range optional modules or functions available:
      IP module
      GPS interface and/or radar and digital compass interface(NM0183 protocol)
    Thermal Optical Parameter
    • FPA(Focal Plane Array):320×240 or 640×480
    • Detector material:Vanadium Oxide(VOX)
    • Receivable IR wave length:7.5~14μm(3~5μm optional)
    • Sensitivity(NETD):35mk@f1.0/85mk@f1.6
    • Time to image:less than 2 second
    • Minimum pixel:38×38/25×25/17×17μm
    • Effective imaging temperature:-40ºC~+75ºC
    • 2X/4X optical zoom optional
    • 3x(33~100mm) or 4x(44~176mm) zoom thermal lens
    • 2-FOV or continuous zoom lens optional
    • Optional target surface temperature testing
    Pan/Tilt Parameter
    • User definable 128 preset,8 preset tour
    • User definable auto-scan, random scan, scan speed
    • User definable pan left/right limit, proportional pan speed
    • User definable power-up action, including self-testing diagnostics
    • Auto/Manual calibration insures precise system operation
    • OSD password protection
    • On-Screen-Display programming menu, inside temperature and pan/tilt/zoom position
    • RS-485/RS-422 half duplex and full duplex optional
    • PELCO P/D protocol and customize protocol optional
    • Surge & non-volatile protection
